Remove welding fumes from your workplace and save money.

The Coral DYNAFLEX arm is our competitively priced, yet highly efficient option for the extraction of welding fumes from various production processes.

Unit of Measure

Specifications

Manufacturer

 N/A Coral USA

Dimensional Data

Diameter

 N/A 6.3 in

A

 N/A 69 in

B

 N/A 46 in

C

 N/A 71 in

D

 N/A 20 in

General Features

Applications

 N/A Welding smoke

Technical highlights

 N/A

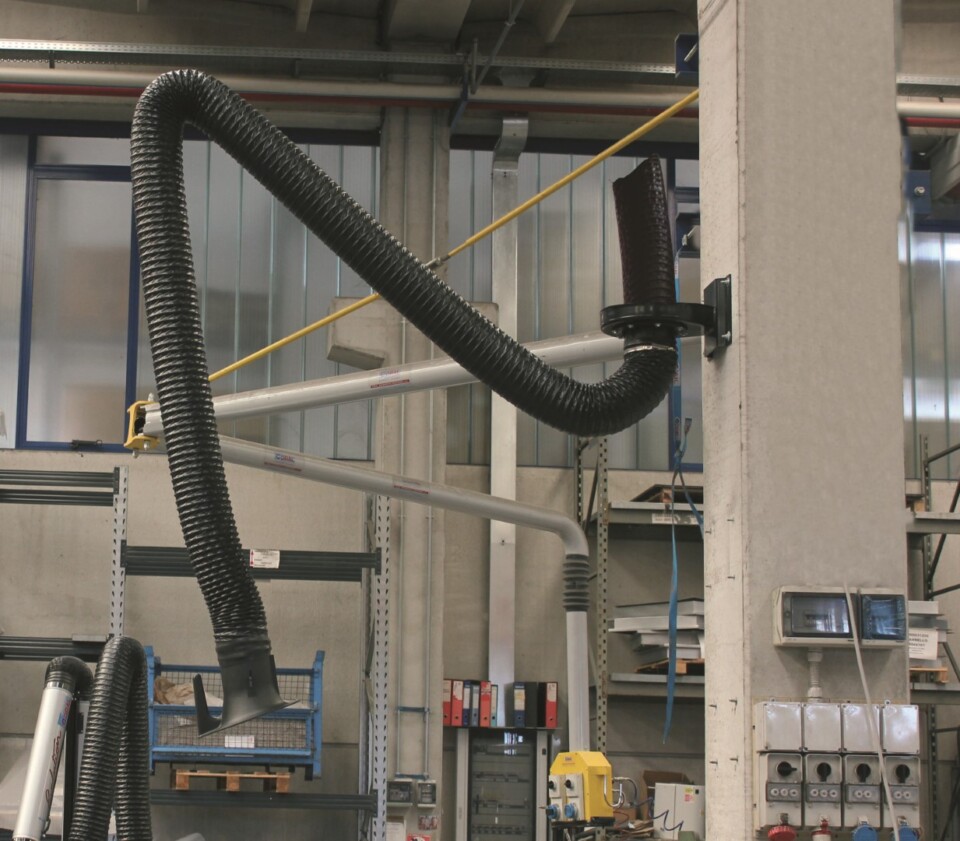

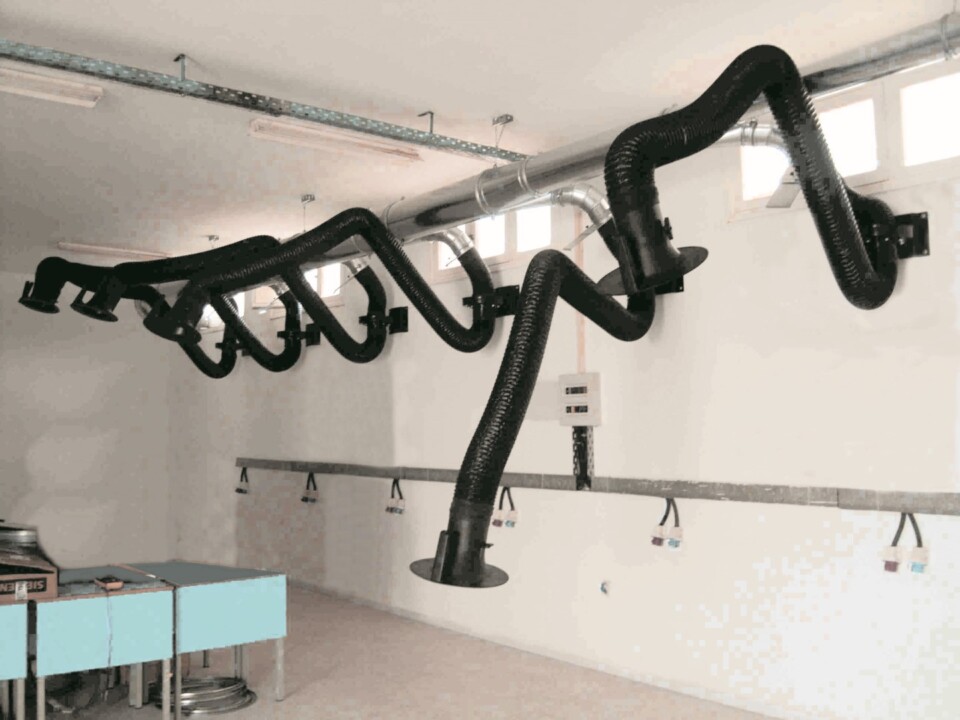

  • 10 and 14 feet (3 and 4 mt) length – Ø 6.3” (160 mm) diameter wall mounted units

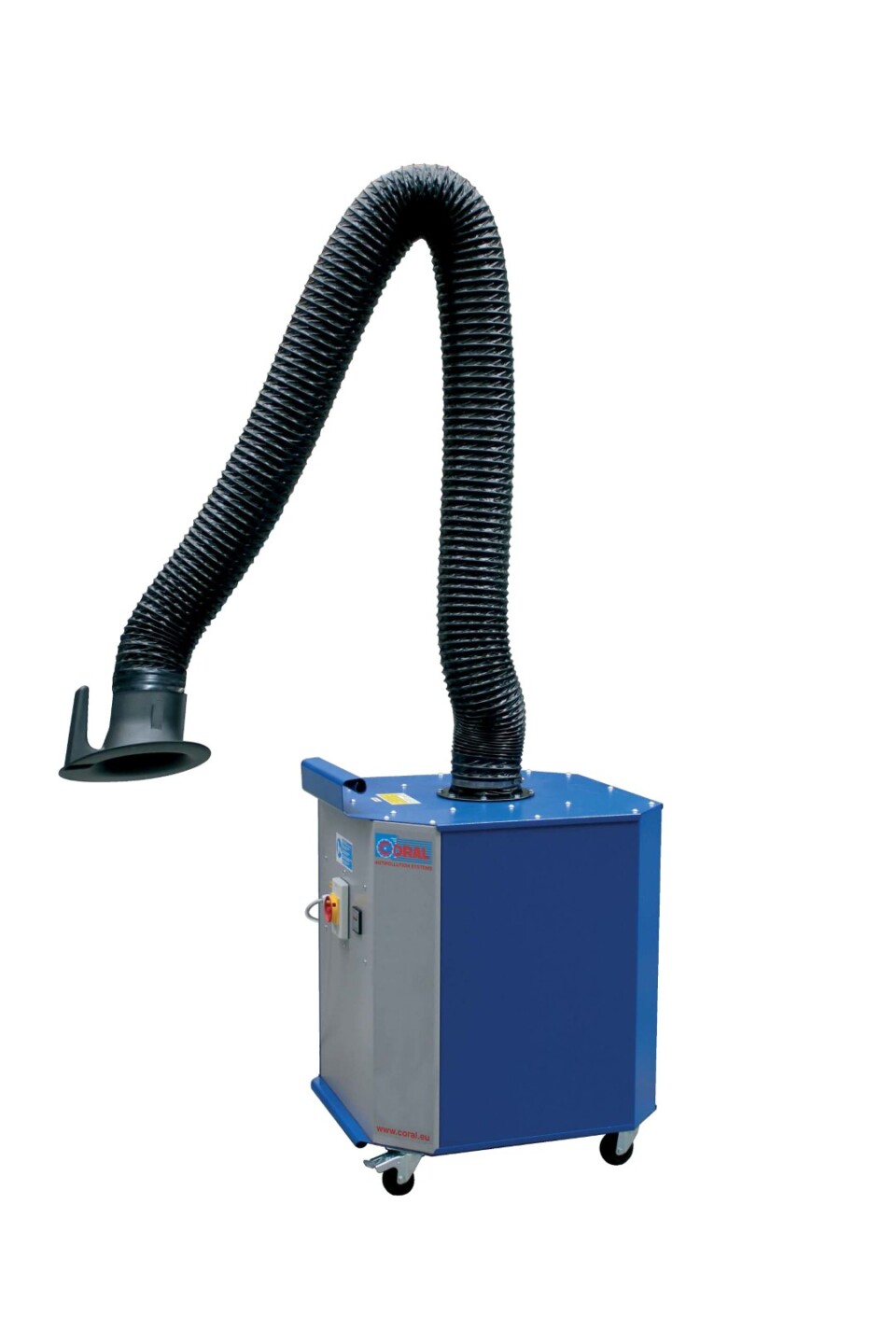

  • 5 and 10 feet (2 and 3 mt) length – Ø 6.3” (160 mm) diameter portable mounted version
  • Flexible PVC pipe NO SMOKE FLEX
  • Easy assembly and maintenance with simple movements

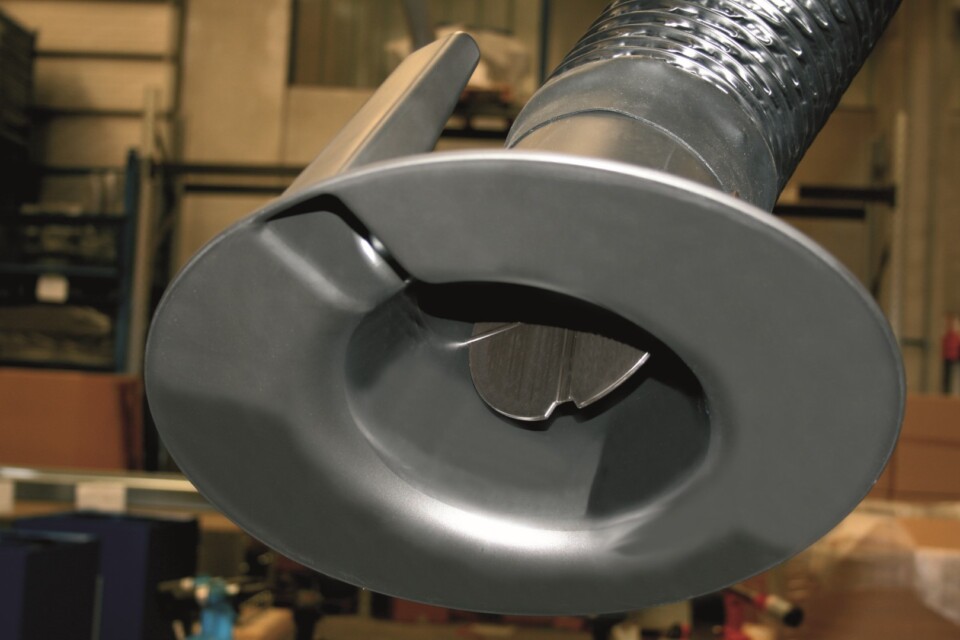

  • Brand new ergonomic polypropylene flanged hood “WINGHOOD” includes an adjustable damper to control air flow

How it works

 N/A

Flexible along its entire length and long-lasting.

The Coral DYNAFLEX arm consists of a metal frame bolted together that supports the entire weight of the arm and provides unique maneuverability and mobility. The double rotary bearing ensures a 360 ° rotation of the hood and at the base connection with the wall support or portable extraction unit. The PVC coated flexible hose guarantees a long life of the arm.

Product Features

Outstanding Features

 N/A
  • Designed for light-duty welding applications
  • Smoother maneuverability than the competition
  • Control dumper included
  • Low cost and long-term durability
  • Suitable for CLEANGO and JETCLEAN DF
