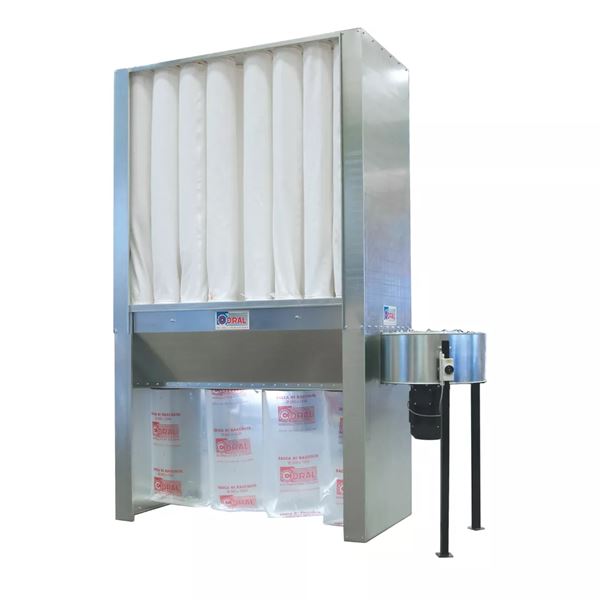

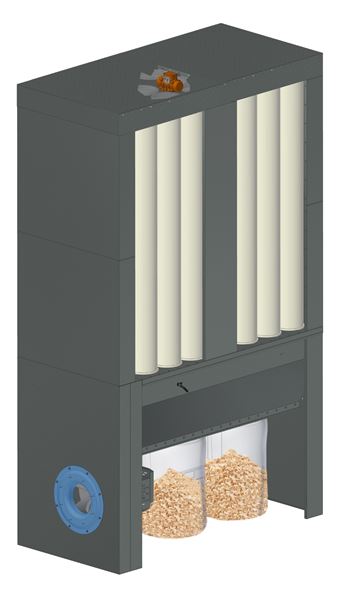

The Coral FM READY 10 modular filter unit is an economically priced and practical solution for the extraction of wood dust. The FM READY 10 features a large filter surface area which allows the dust collection system to run for long periods of time before maintenance is required.
The FM READY 10 filter is ideal for the extraction of wood dust and small chips in applications where the volume of wood dust does not require the use of a mini-silo or separate container (silo). The FM READY 10 it's specifically designed for the USA market, with UL certified motor, switch and filter.
Manufacturer |
N/A Coral USA |
Filter |
N/A Sleeves |
Paneled |
N/A No |
Sleeves |
N/A 32 nr |
Bags (nr) |
N/A 3 |
Voltage |
N/A 230/460 V |
Frequency |
N/A 60 Hz |
Filtering surface |
N/A 510 sqft |
Max air flow |
N/A 5000 cfm |
Rounds per minute |
N/A 1750 rpm |
Power |
N/A 10 hp |
Available static pressure |
N/A 6 inWG |
Inlet number |
N/A 1 nr |
Inlet |
N/A 14x14 in |
Weight |
N/A 793 lbs |
Technical highlights |
N/A

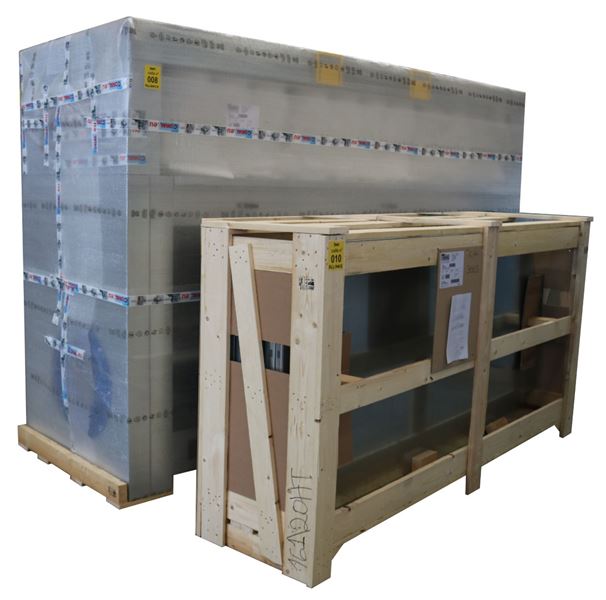

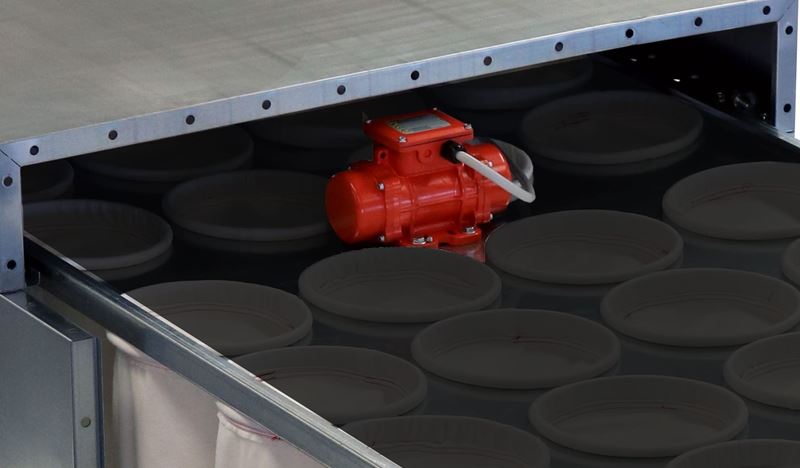

Improved filtering efficiency thanks to the polyester felt filter sleeves.The large number of filter sleeves utilizes a polyester felt which improves filtering efficiency and reduces pressure loss compared to traditional fabrics such as cotton. A polyester needle felt type A is supplied as standard. Also available, on request, special filtering materials with antistatic treatment and BIA certification CLASS M. Large filtering surface to minimize maintenance, in a space-saving format.The FM READY 10 has been created to keep the overall dimensions small in relation to the filtering surface, thus reducing the footprint in your facility. As a result, it can be easily installed where the available space is extremely restricted. Fast and easy indoor installation.The Coral FM READY 10 is delivered pre-assembled, ready for operation in just a few steps. |
