Extract dust and hazardous substances in potentially explosive zones.

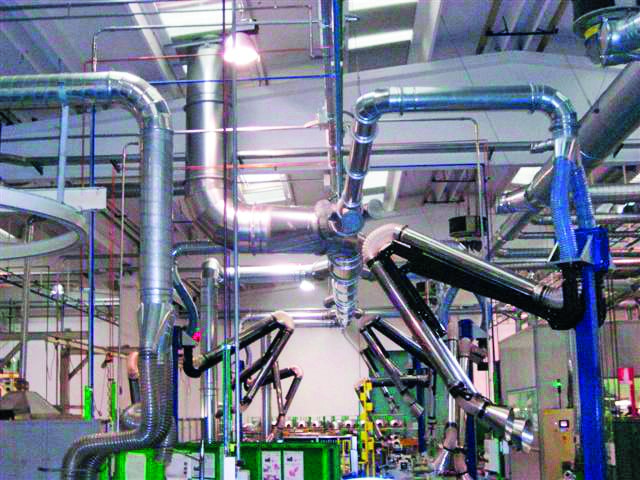

The Coral EVOLUTION NO-SMOKE ATEX extraction arms are designed to extract hazardous pollutants at the source and move them towards specific filtering systems in potentially explosive atmospheres.

The construction of our Coral EVOLUTION NO-SMOKE ATEX arms use specific materials to guarantee proper ground connection, dissipating the static electric energy generated by the air flow in the pipes. The Coral EVOLUTION NO-SMOKE ATEX arm is suitable to be used in zones that are classified as potentially hazardous.

Unit of Measure

Specifications

Manufacturer

 N/A Coral USA

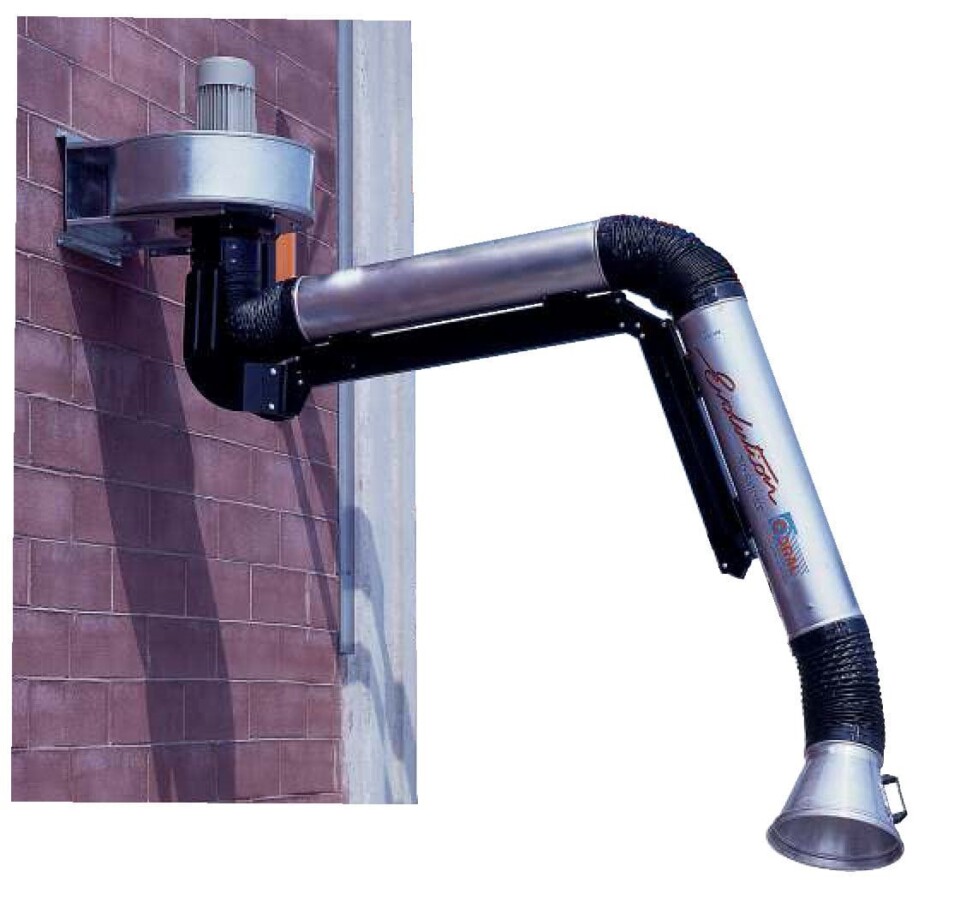

Version

 N/A Wall

Dimensional Data

Diameter

 N/A 6.3 in

Length

 N/A 119 in

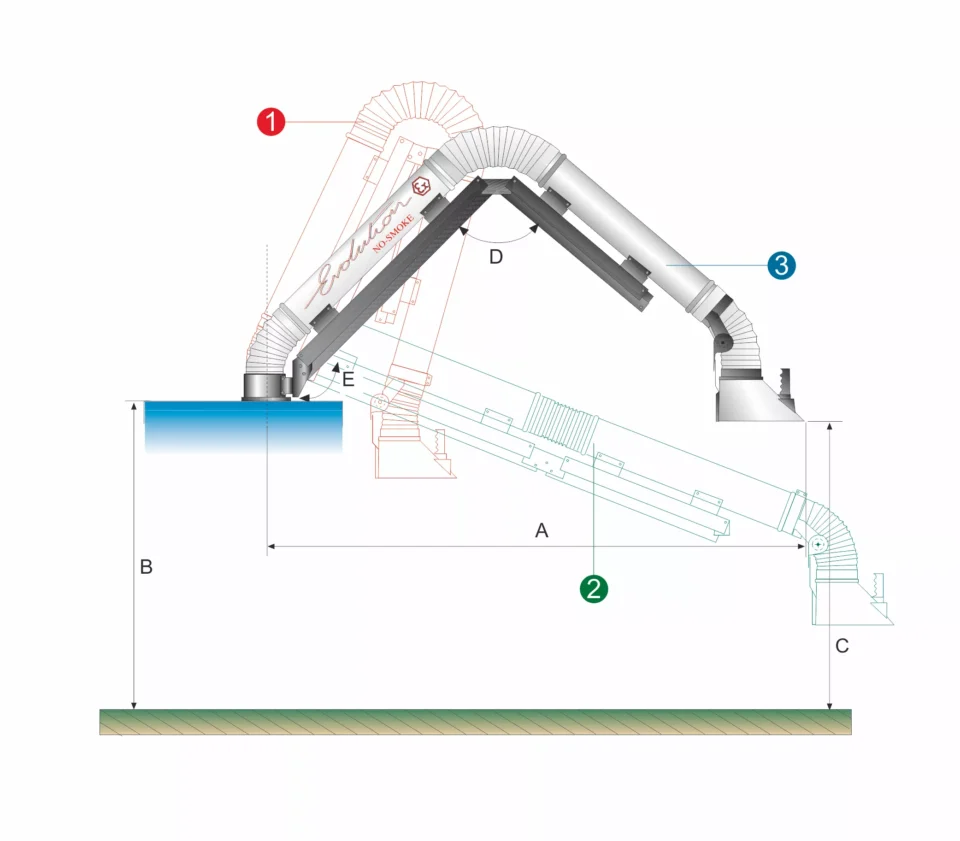

Working position A

 N/A 97 in

Working position B

 N/A 119 in

Working position C

 N/A 56 in

Working position D

 N/A 145 °

Working position E

 N/A 80 °

Open arm A

 N/A 111 in

Open arm B

 N/A 119 in

Open arm C

 N/A 91 in

Open arm D

 N/A 180 °

Open arm E

 N/A 90 °

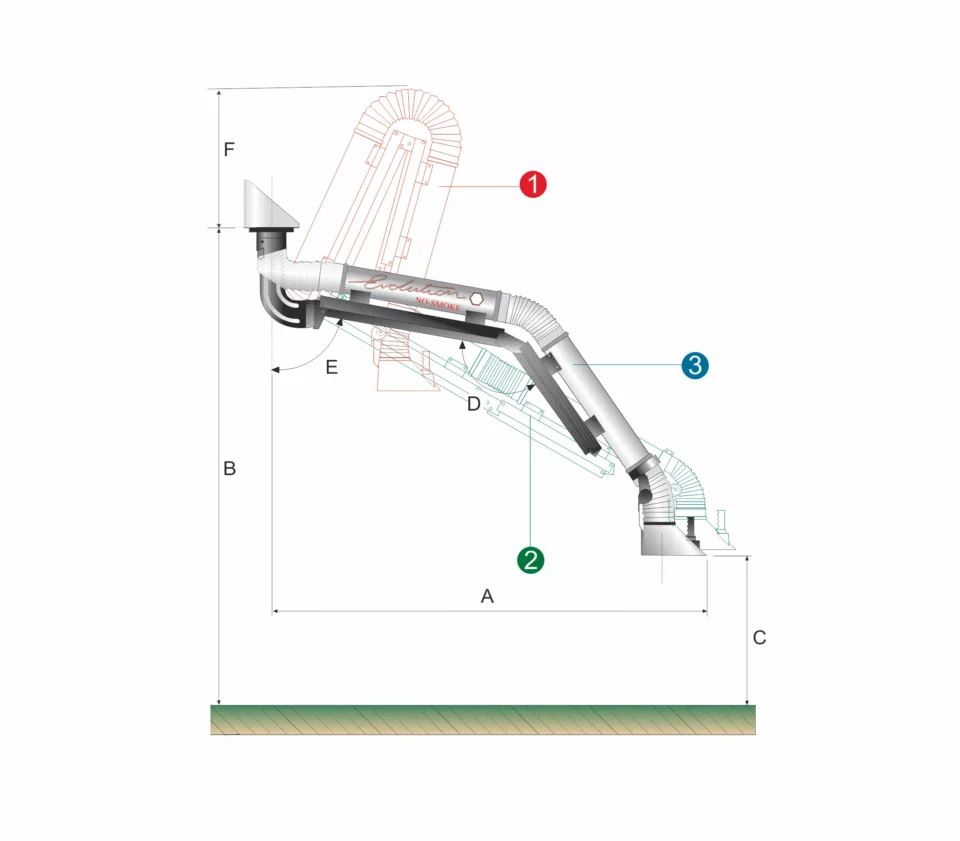

Closed arm A

 N/A 36 in

Closed arm B

 N/A 119 in

Closed arm C

 N/A 83 in

Closed arm D

 N/A 10 °

Closed arm E

 N/A 150 °

Closed arm F

 N/A 34 in

General Features

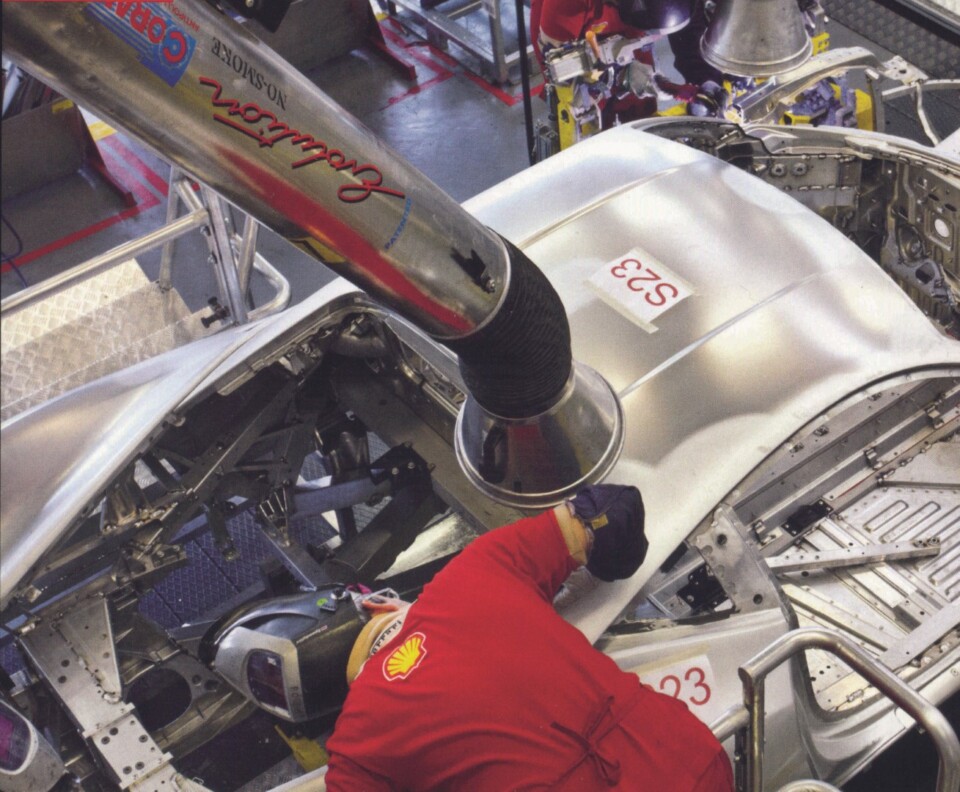

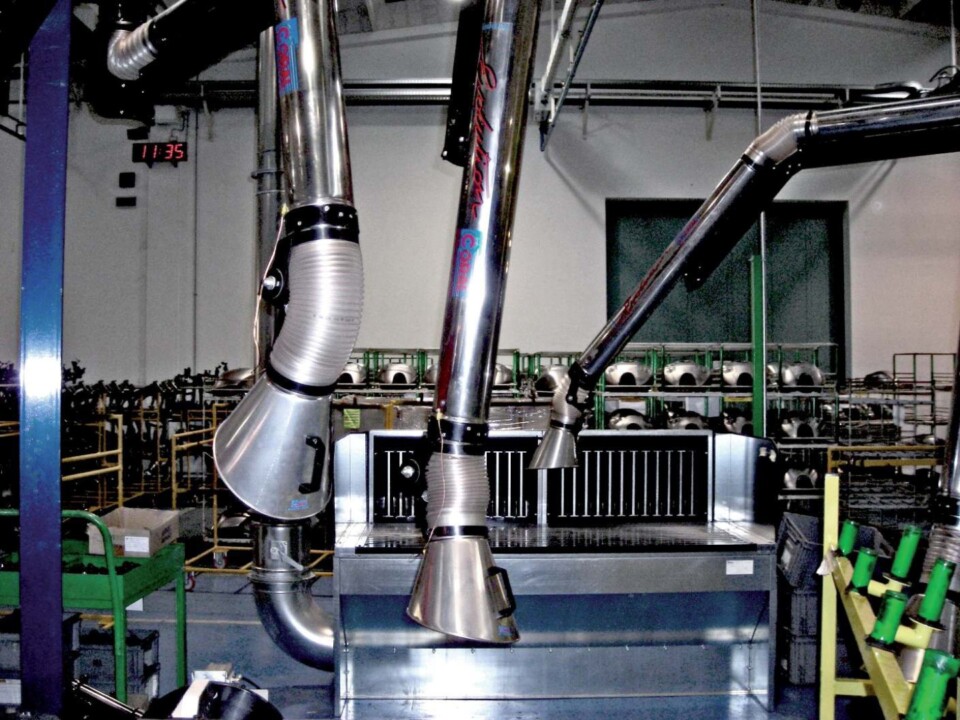

Applications

 N/A
  • Welding
  • Grinding
  • Deburring
  • Polishing
  • Sanding
  • Thermal Cutting
  • Dry Dust
  • Hazardous Dust
  • Sandblasting
  • Powder Coating

Technical highlights

 N/A

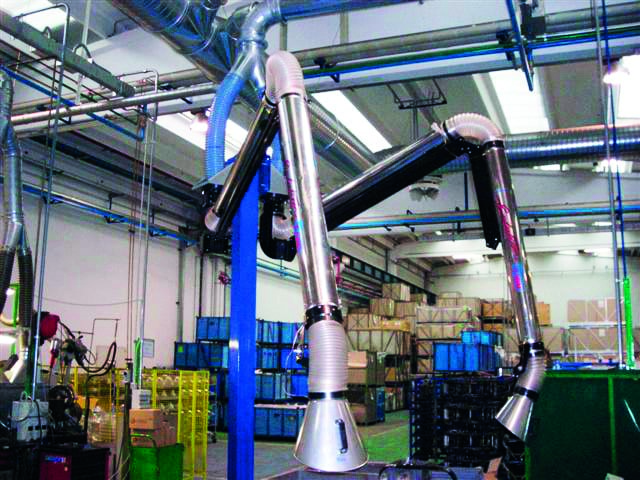

360º rotation to improve performance and lower both costs and noise

Coral EVOLUTION NO-SMOKE arm base is equipped with a custom rotary bearing unique to only Coral which enables a full 360º rotation to optimize usability. This patented external joint design not only offers easier operator adjustability of the arm but also results in a lower static resistance, allowing for better contaminant capture and removal. The improved performance results in lower operating costs, less operating noise, and improved air quality for the operator at the workstation. Overall, this unique design enables the arm to outperform other arms available on the market.

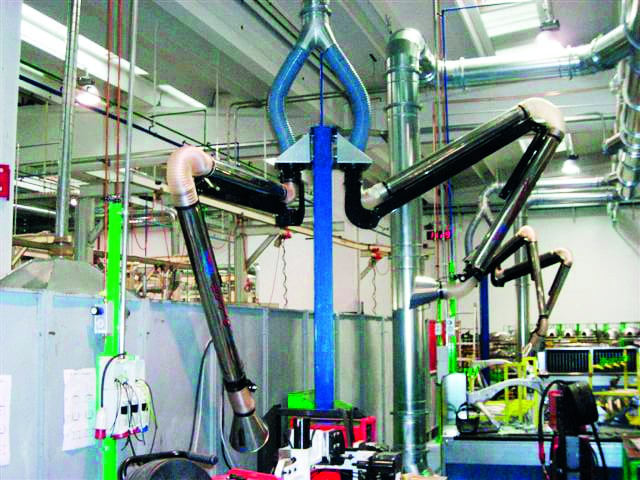

How it works

 N/A

Designed to easily and efficiently capture contaminants at the source

Contaminated air is captured by the fully adjustable hood and passes through AISI 316 stainless steel pipes. Contaminants may be exhausted to a central filtration system or, with an optional high-efficiency fan, to the atmosphere, depending upon regulations. The body and hood of Coral EVOLUTION NO-SMOKE arm is coupled together by a special, patented external joint and support design that allows for easy and convenient movement.

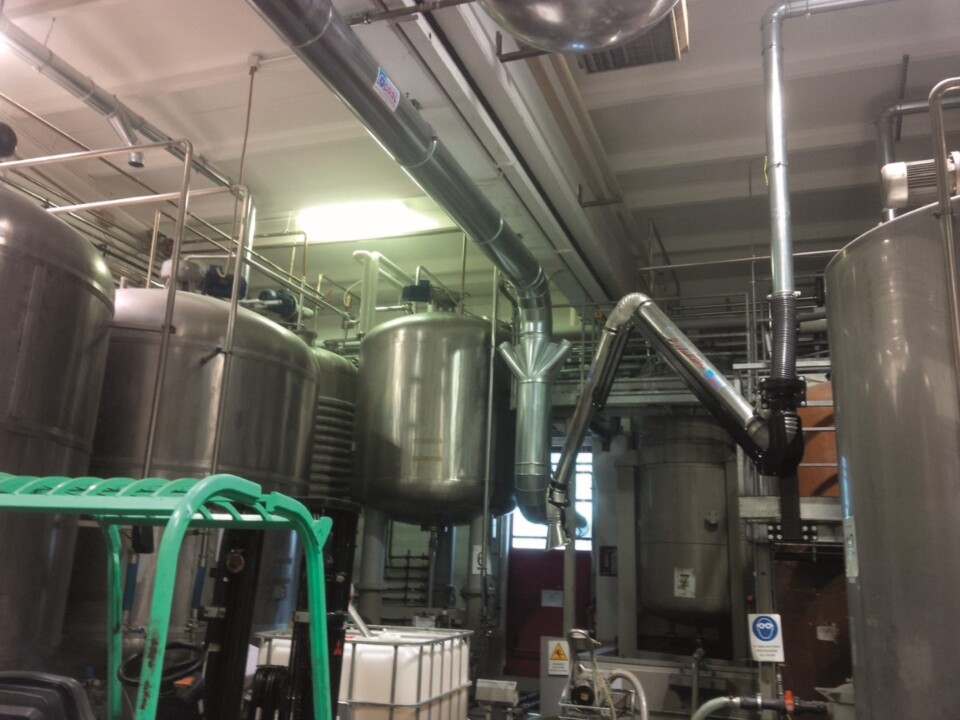

Optional construction fully in stainless steel to meet your application requirements

On request we manufacture Coral EVOLUTION NO-SMOKE ATEX arm fully in AISI 316 stainless steel which is suitable for the food industry, pharmaceutical and chemical applications.

Product Features

Outstanding Features

 N/A
  • Ideal for food, pharmaceutical and chemical applications
  • AISI 316 stainless steel rigid pipes, hardware, bearing, damper and hood
  • Proper grounding to dissipate any static charges
  • External articulated joints, for easier movement and lower static resistance
  • Lower costs, less noise, and improved air quality
